5000 kgs Hydraulic Pallet Truck
INR 36,500
Equipment Details
VIMAL 5000 kgs Hydraulic Pallet Truck is an economic & effortless solution for loading and unloading super-heavy goods, The heavy duty steel construction and effortless pump unit with super-large piston to reduce operating efforts.
TECHNICAL SPECIFICATIONS
| Model | VI-5000-1150-540-85I | VI-5000-1220-685-85I | |
|---|---|---|---|
| Capacity | kg | 5000 | 5000 |
| Pump Type | Integrated | Integrated | |
| Service Weight (Nylon Whel) | kg | 130 | 130 |
| Service Weight (Steel Wheel) | kg | 140 | 140 |
| Lifting Height | mm | 105 | 105 |
| Max. Fork Lifting Height | mm | 190 | 190 |
| Lowered Height of Fork | mm | 85 | 85 |
| Fork Outside Distance | mm | 540 | 685 |
| Fork Length | mm | 1150 | 1220 |
| Fork Width | mm | 180 | 180 |
| Tyre Type | Nylon | Nylon | |
| Tyre Size, Drive Wheels | mm | 180*50 | 180*50 |
| Tyre Size, Load Wheels | mm | 80*66 | 80*66 |
FEATURES
Steering
Easy to maneuver with 210 degrees turning radius. All pivots points are greased ensures excellent maneuverability with effortless steering.
Spray finishing
Standard painting system ensures the best powder coating and painting quality.
Controlled speed
Speed lowering valve can adjust the decent speed freely.
Reliable construction
Heavy gauge steel construction. Drop forged lift link arms provide available strength and durability.

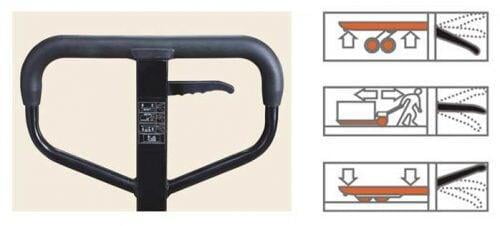

Easy lowering operation
Foot and hand control the lowering function to ensure easy operation.
Overload protection
Excellent and compact pump design with high pressure relief valve to prevent overload
Integrated & Galvanized Big Size Pump
Piston of 45 mm Diameter
Solid & Adjustable Push Rod
Wheel Protecting Rubber
Hand Protection Rubber
Designs to Strengthen to Prevent the
Body from Welding:
Equipped with 4 Grease Fittings:
