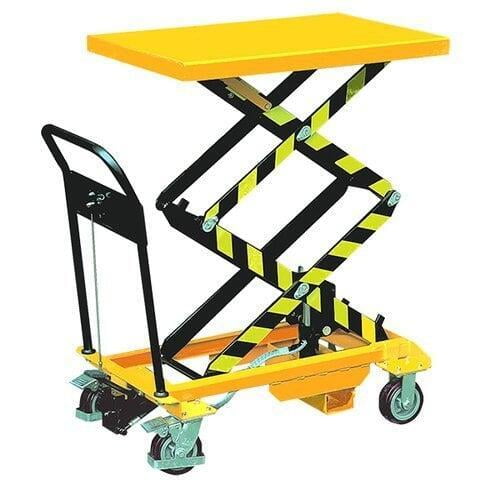

Scissor Lift Table Truck
Scissor Lift Table Truck Capacity*
150kg
350kg
500kg
800kg
1000kg
1500kg
150kg
Model Number : VI-SLTT-150C
HSN Code : 84279000
Stock: In-Stock
Main Specs : Foot pedal operated hydraulic lifting, easy to operate brake unit, lowering valve for precise lowering, can be customized as per your requirement
350kg
Model Number : VI-SLTT-350DC
HSN Code : 84279000
Stock: In-Stock
Main Specs : Foot pedal operated hydraulic lifting, double scissor type, easy to operate brake unit, lowering valve for precise lowering, can be customized as per your requirement
500kg
Model Number : VI-SLTT-500C
HSN Code : 84279000
Stock: In-Stock
Main Specs : Foot pedal operated hydraulic lifting, easy to operate brake unit, lowering valve for precise lowering, can be customized as per your requirement
800kg
Model Number : VI-SLTT-800DC
HSN Code : 84279000
Stock: In-Stock
Main Specs : Foot pedal operated hydraulic lifting, double scissor type, easy to operate brake unit, lowering valve for precise lowering, can be customized as per your requirement
1000kg
Model Number : VI-SLTT-1000DC
HSN Code : 84279000
Stock: In-Stock
Main Specs : Foot pedal operated hydraulic lifting, double scissor type, easy to operate brake unit, lowering valve for precise lowering, can be customized as per your requirement
1500kg
Model Number : VI-SLTT-1500DC
HSN Code : 84279000
Stock: In-Stock
Main Specs : Foot pedal operated hydraulic lifting, double scissor type, easy to operate brake unit, lowering valve for precise lowering, can be customized as per your requirement
Equipment Details
Equipment Details
Vimal foldable light duty platform hand truck with 150, 250, 300 kgs offers users with simple, economic and reliable material transport.
TECHNICAL SPECIFICATIONS
| Model No. | VI-SLTT-150C | VI-SLTT-350DC | VI-SLTT-500C | VI-SLTT-1000C | VI-SLTT-800DC | VI-SLTT-1000DC | VI-SLTT-1500DC | |
|---|---|---|---|---|---|---|---|---|
| Load Capacity | kg | 150 | 350 | 500 | 1000 | 800 | 1000 | 1500 |
| Lowest Height | mm | 210 | 350 | 280 | 415 | 450 | 500 | 500 |
| Max. Height | mm | 720 | 1300/1500 | 900 | 1000 | 1500 | 1700 | 1700 |
| Table Dimensions | mm | 700*450*35 | 905*500*50 | 815*500*50 | 1016*510*60 | 1200*610*60 | 1200*610*80 | 1200*610*80 |
| Dia. of the Wheel | mm | ￠100 | ￠125 | ￠125 | ￠150 | ￠125 | ￠150 | ￠150 |
| Net Weight | kg | 40 | 106 | 82 | 112 | 150 | 225 | 225 |
| Packing Dimensions | mm | 820*470*230 | 1010*520*380 | 900*510*310 | 1140*570*450 | 1380*610*460 | 1370*610*500 | 1370*610*500 |
Features
- Foot pedal operated hydraulic lifting.
- Ergonomically designed lifter and transporter features.
- Handy hydraulic feet pump to elevate formed-edge platform, reducing strain and fatigue.
- Used for lifting, transporting, positioning, assembling, stacking and un-stacking.
- Easy to operate brake keeps unit stationary while loading and unloading, while the lowering valve provides precise lowering.
- Steel construction with platform made from steel sheet, chrome plated handle.
