Stackers» Semi Electric Stacker

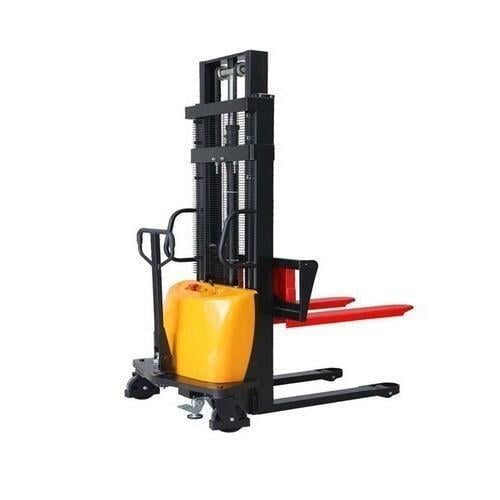

Semi Electric Stacker
INR 131,000

Maximum Capacity

1000kg

Maximum Lifting Height 1600 mm 2500 mm 3000 mm 2000 mm

1000kg

Model Number : VI-SES-1030N

HSN Code : 84289090

Stock: In-Stock

Main Specs : VIMAL Semi Electric Stacker with 1000/1500/2000 kg capacity ensures the reliable quality and best feeling of operation. Compact vehicle design provides exceptional maneuverability in tight areas. Adjustable fork over fork. Lifting supporting leg to keep Stacker steady when lifting or lowering. External Charger.

Maximum Lifting Height 1600 mm 2500 mm 3000 mm 2000 mm

Model Number : VI-EPS-0415

HSN Code : 84279000

Stock: In-Stock

Main Specs : Foot scrubber for lifting, Smooth downhill, speed adjusted manually, driving wheels with braking devices, strengthened hydraulic cylinder

Request Quote

Equipment Details

Vimal semi electric stacker with 1000/1500/2000 kg capacity ensures the reliable quality and best feeling of operation.

Model No.		VI-SES-1016C	VI-SES-1516C	VI-SES-2016C	VI-SES-1020C	VI-SES-2020C	VI-SES-1025C	VI-SES-1525C	VI-SES-2025C	VI-SES-1030C	VI-SES-1530C	VI-SES-1533C	VI-SES-1535C
Capacity	kg	1000	1500	2000	1000	2000	1000	1500	2000	1000	1500	1500	1500
Load Center	mm	500	500	500	500	500	500	500	500	500	500	500	500
Lifting Height	mm	1600	1600	1600	2000	2000	2500	2500	2500	3000	3000	3300	3500
Lowered Height of Fork	mm	85	85	85	85	85	85	85	85	85	85	85	85
Fork Length	mm	1150	1150	1150	1150	1150	1150	1150	1150	1150	1150	1150	1150
Fork Size	mm	54*160	54*160	54*160	54*160	54*160	54*160	54*160	54*160	54*160	54*160	54*160	54*160
Fork Width	mm	680	680	680	680	680	680	680	680	680	680	680	680
Turing Radius	mm	1326	1326	1326	1326	1326	1326	1326	1326	1326	1326	1326	1326
Mast Extend Height	mm	2165	2165	2165	2532	2532	3032	3032	3032	3532	3532	3832	4032
Mast Lower Height	mm	2165	2165	2165	1565	1565	1815	1815	1815	2065	2065	2215	2315
Overall Width	mm	904	904	904	904	904	904	904	904	904	904	904	904
Overall Length (1150mm fork length)	mm	1673	1673	1673	1673	1673	1673	1673	1673	1673	1673	1673	1673
Minimum Ground Clearance	mm	84	84	84	84	84	84	84	84	84	84	84	84
Lifting Speed (unloden/laden)	mm/s	230/130	230/130	230/130	230/130	230/130	230/130	230/130	230/130	230/130	230/130	230/130	230/130
Lowering speed (Unloden/Laden)	mm/s	400/500	400/500	400/500	400/500	400/500	400/500	400/500	400/500	400/500	400/500	400/500	400/500
Lifting Motor	v/kw	12/1.6	12/1.6	12/1.6	12/1.6	12/1.6	12/1.6	12/1.6	12/1.6	12/1.6	12/1.6	12/1.6	12/1.6
Battery Capacity	v/ah	12/120	12/120	12/120	12/120	12/120	12/120	12/120	12/120	12/120	12/120	12/120	12/120
Charger	v/a	Dec-15	Dec-15	Dec-15	Dec-15	Dec-15	Dec-15	Dec-15	Dec-15	Dec-15	Dec-15	Dec-15	Dec-15
Weight	kg	285	310	335	345	395	365	390	415	385	410	430	450

TECHNICAL SPECIFICATIONS

FEATURES

Compact design provides exceptional manoeuvrability in tight areas
With handle return gas spring, brake, protection wheel cap, protection net, wheel lock
Adjustable fork over width
Lifting supporting legs to keep stacker steady when lifting or lowering
External charger
Smart mast roller, adjusting eccentric bearing ensure mast verticality, keep mast verticality from 89.3-89.7 degree.
Smart supporting leg, the steel tube is inside of leg square steel, ensure the strength of supporting leg.
Smart design to reduce the noise when unloading running by a special screw with spring tip.
Stronger backrest, full welding from front to back of backrest, ensures the strength
