Mobile Order Picker

DOCKING EQUEPMENT »Mobile Order Picker

Model Number : VI-OPT-M SERIES

HSN Code : 76109090

Stock: In-Stock

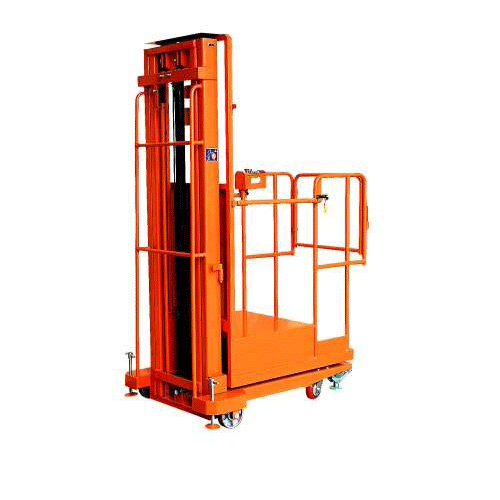

Main Specs : Nido mobile order picker is an ergonomically designed for material picking and movement. Light design allows it o be easily transported by a single person. The light weight and maneuverability makes it convenient use in supermarket and warehouse.

Request Quote

Equipment Details

VIMAL mobile order picker is an ergonocally designed for material picking and movement. Light design allows it to be easily transported by a single person. The light weight and maneuverability makes it convenient use in supermarket and warehouse.

TECHNICAL SPECIFICATIONS

Model No.		VI-OP-M-02-2.7(II)	VI-OP-M-02-3.3(II)	VI-OP-M-2-3.5	VI-OP-M-2-4.0	VI-OP-M-2-4.5	VI-OP-M-02-4.5(III)

S.W.L.	kg	200	200	200	200	200	200
Maximum Occupants		1	1	1	1	1	1
Working Height (H1)	mm	4700	5300	5500	6000	6500	6500
Platform Floor Height (H2)	mm	2700	3300	3500	4000	4500	4500
Overall Length (A)	mm	1300	1300	1300	1300	1300	1300
Overall Width (C)	mm	760	760	840	840	840	840
Overall Height (B)	mm	1790	2000	1660	1830	1990	1990
Platform Size	mm	900*600	950*640	900*640	900*640	900*640	900*600
Ground Clearance	mm	40	40	30	30	30	30
Wheelbase	mm	770	770	770	770	770	770
Lifting Motors	VDC / kw	12/1.6	12/1.6	12/1.6	12/1.6	12/1.6	12 / 1.5
Up / Down Spees	sec	16/14	22 /16	19/15	20/16	22/17	21 / 23
Batteries	V/Ah	12/120	12/120	12/120	12/120	12/120	12 / 120
Integrated Charger	V/A	Dec-15	Dec-15	Dec-15	Dec-15	Dec-15	Dec-15
Tyres (Back Wheels)	mm	150*56	150*56	150*56	150*56	150*56	150*40
Tyres (Front Wheels)	mm	150	150	150	150	150	127
Weight	kg	284	308	370	376	424	365

FEATURES

Light design allows it to be easily transported by a single person.
The light weight and maneuverability make it convenient to use in supermarket and warehouse.
