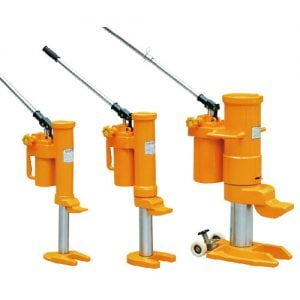

Hydrualic Jack
Hydrualic Jack
Hydrualic Jack
Model Number : VI-JK-LJ Series
HSN Code : 84279000
Stock: In-Stock
Main Specs : Available with 5 ton, 10 ton & 25 ton capacity, Compact design, Can be used in any position, adjustable lowering speed, Removable pump lever CE safety standard
Equipment Details
Equipment Details
VIMAL hydraulic jacks are used for repairs, maintenance & installation of heavy machines.
| Model | VI-JK5 | VI-JK10 | VI-JK25 | |
|---|---|---|---|---|
| Rated Lifting Capacity | kg | 5000 | 10000 | 25000 |
| Lifting Range of Toe | mm | 25-230 | 30-260 | 58-273 |
| Lifting Range of Top | mm | 368-573 | 420-650 | 505-720 |
| Loan on Operating Handle | N | 380 | 400 | 400 |
| Net Weight | kg | 25 | 35 | 102 |
| Packing Size | mm | 36.5*20*43 | 38*22.5*48.5 | 54*32*61.5 |
Safety Precautions:
- Use this jack on the steady land where the surface can afford the load.
- Keep a sure amount load during lifting.
- Overload use is not allowed.
- Place where is unsteady or dangerous is not allowed to use this jack.
- Broken, unqualified or senescent ones are not allowed to be used.
- An unsteady load can cause the jack load slip.
