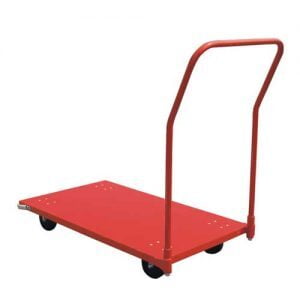

Heavy Duty Platform Hand Truck

Table Truck » Heavy Duty Platform Hand Truck

Vimal heavy duty platform hand truck with 350, 700, 1200 & 1800 kgs offers users with simple, economic and reliable material transport.

Model No.		VI-PHT-350	VI-PHT-700	VI-PHT-1200	VI-PHT-1800
Capacity	Kg	350	700	1200	1800
Width of Table	mm	610	685	762	762
Length of Table	mm	1067	1372	1524	1524
Height	mm	860	860	860	860
Material	mm	Steel	Steel	Steel	Steel
Caster Wheel	mm	125*35	150*35	200*50	125*35
Net Weight	Kg	32	52	73	86

Highly maneuverable trucks have extra heavy-duty welded steel deck construction.
Used in shipping and receiving rooms, warehouses, stockrooms, shops, laboratories, and stores.
Extra heavy-duty formed steel deck has all welded construction with angle frame reinforcements welded underneath for additional strength.
Casters meet specified load capacity requirements and facilitate handling in confined areas.
Two ball bearing swivel and two rigid mounting plate casters. casters bolt on in standard corner pattern, or diamond (tilt type) pattern.
Diamond tilt pattern permits the truck to tilt balance slightly on center side casters, allowing the truck to turn in its own radius.
Extra capacity steel platform trucks with polyurethane caster wheels.
Cheerful and light trolleys for easy and safe transport.
