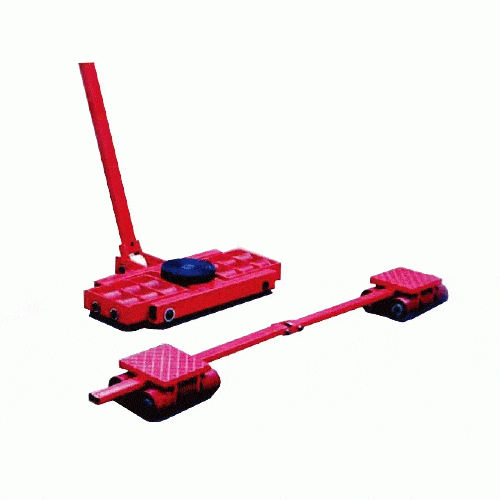

Heavy Duty Skates
Heavy Duty Skates
Heavy Duty Skates
INR 33,600
Model Number : VI-SK-X+Y Series
HSN Code : 84279000
Stock: In-Stock
Main Specs : Available with 4, 8 & 16 ton capacity, PU rollers with ball bearings, Compact size, turn able
Equipment Details
Equipment Details
VIMAL heavy duty skates have been designed to move heavy loads across the floor. The skates help to distribute the load evenly on the floor. The floor must be completely smooth and flat in order to move the load.
| Model No. | VI-SK-X4+Y4 | VI-SK-X8+Y8 | VI-SK-X16+Y16 | ||||
|---|---|---|---|---|---|---|---|
| X | Y | X | Y | X | Y | ||
| No. of Rolllers | 4 | 4 | 8 | 8 | 16 | 16 | |
| Dimensions of Turnplate | mm/inch | 150 | 140*120 | 160 | 200*160 | 200 | 240*200 |
| Length of Handle Adjusting Length of Lever | mm/inch | 800 | 300-1000 | 1100 | 400-1400 | 1100 | 400-1500 |
| Overall Size | mm | 230*230*110 | 170*140*110 | 560*420*110 | 200*200*110 | 936*500*110 | 310*220*110 |
| Capacity | T | 4 | 8 | 16 | |||
| Net Weight | kg | 28 | 72 | 124 |
FEATURES
- Robust construction
- Impressive load carrying capacity and compact size
- Skates are turnable
- Skates can be joined together to increase capacity
- PU rollers with ball bearing to protect floor surface
- Low overall height for easy positioning under loads
- Available in different models to meet the needs of specific applications
