Reel Pallet Truck
1150 X 540 mm
1220 X 685 mm
1150 X 540 mm
Model Number : VI-REEL-2500-1150-550-85
HSN Code : 84279000
Stock: In-Stock
Main Specs : Can lift and move coils, paper reels & cylinders, Can be customized as per your requirements
1220 X 685 mm
Model Number : VI-REEL-2500-1220-685-85
HSN Code : 84279000
Stock: In-Stock
Main Specs : Can lift and move coils, paper reels & cylinders, Can be customized as per your requirements
Equipment Details
Equipment Details

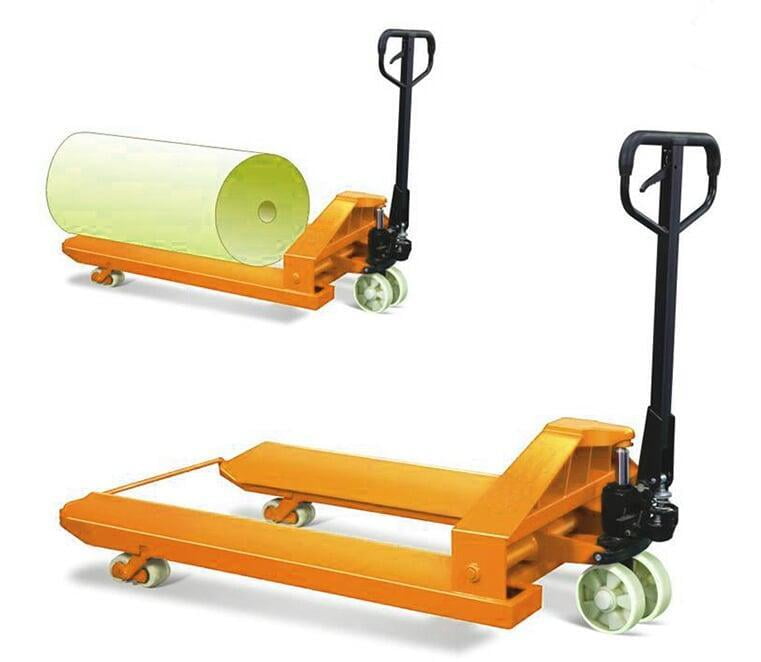

Reel/Paper Roll pallet truck for hold roller for handling cylindrical loads where the lifting operation is achieved without pallets . Cylindrical loads can be lifted directly from the floor , and transported. VIMAL Reel Pallet Truck facilitates smooth & easy movement of warp beam or rolls. The beam flanges are rested on the trolley while transporting.
TECHNICAL SPECIFICATIONS
| Vimal Reel Pallet Truck | ||
|---|---|---|
| Model | VI-REEL | |
| Capacity | kg | 1200 |
| Fork Size to Suit Beam | mm | 800-1000*1200 |
| Wheel | Nylon | |
| Battery Reel Pallet Truck | ||
| Model | VI-EP-REEL | |
| Capacity | kg | 2000 |
| Lifting Max. Height | mm | 115 |
| Fork Min. Height | mm | 155 |
| Clamp Width | mm | 685 |
| Clamp Length | mm | 900 |
| Battery | V/Ah | 24/120 |
| Charger | V/A | 24/15 |
| Weight | kg | 317 |
| Overall Size (L*W*H) | mm | 2500*1000*1500 |
| Channel Request | mm | 2600 |
| Forward & Back Request | mm | 800 |
| Driving Wheel | mm | 1*?250*80 |
| Training Wheels | mm | 2*?150*50 |
| Front Wheel | mm | 2?80*70 |
| Climbing Slope | ° | 6-Apr |
| Travel Speed | km/h | 6-Apr |
| Lifting Speed | mm/s | 45/50 |
| Falling Speed | mm/s | 50/45 |
| Braking Type | Electromagnetic Braking |
FEATURES
- Reel pallet truck used for handling cylindrical loads where the lifting operation is achieved without pallets.
- Cylindrical loads can be lifted from the floor and transported.
- Tandem load rollers give easy running over uneven floors.
- Widely used for roll of paper, carpet, textile or other materials.
Battery Version:
- Added the connecting link to the end of the forks, prevents the material falls when the load is heavier or larger rolls.
- There is a circular arc in the triangle forks inner, protect the surface of the circle is not affected by extrusion deformation effectively.
- 24V battery with charger, easy to replace.
- Super steel manufacturing
- Electric walking, hand hydraulic lifting.
- Fully customizable as per requirement.
