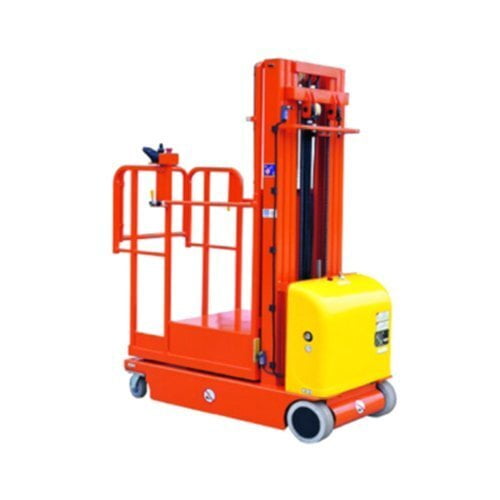

Self Propelled Order Picker

DOCKING EQUEPMENT »Self Propelled Order Picker

Model Number : VI-OP-SP SERIES

HSN Code : 76109090

Stock: In-Stock

Main Specs : Nido self propelled order picker is an ergonomically designed for material picking and movement making it convenient to use in supermarket and warehouses.

Request Quote

Equipment Details

VIMAL self propelled order picker is an ergonomically designed for material picking and movement making it convenient to use in supermarket and warehouses.

TECHNICAL SPECIFICATIONS

Model No.		VI-OP-SP-2-4.5	VI-OP-SP-3-3(II)	VI-OP-SP 3 - 3.5 (II)	VI-OP-SP 3 - 4.5 (III)
S.W.L.	kg	200	300	300	300
Working Height (H1)	m	6.5	5	5.5	6.5
Platform Floor Height (H2)	m	4.5	3	3.5	4.5
Overall Length (A)	m	1.3	1.56	1.56	1.5
Overall Width (C)	m	0.84	0.76	0.76	0.76
Overall Height (B)	m	1.99	1.64	1.64	1.99
Platform Size	m	0.90*0.64	0.93*0.70	0.93*0.70	0.93*0.70
Ground Clearance	m	0.03	0.04	0.04	0.04
Wheelbase	m	0.77	1.23	1.23	1.23
Turning Radius		-	0	0	0
Drive Motors	VDC / kw	-	2*24/0.4	2*24 / 0.4	2*24 / 0.4
Lifting Motors	VDC / kw	12/1.6	24-Feb	24-Feb	24-Feb
Travel Speed (Stowed)	km/h	-	4	4	4
Travel Speed (Raised)	km/h	-	1.1	1.1	1.1
Up / Down Spees	sec	22/17	24/21	24 / 21	24 / 21
Batteries	V/Ah	12/120	2*12/120	2*12 /120	2*12 / 120
Integrated Charger	V/A	Dec-15	24-Oct	24-Oct	24-Oct
Grade Ability	%	-	0.25	25	25
Maximum Slope	Degree	-	1.5	1.5	1.5
Tyres (Drive Motors)	mm	150*56	230*80	230*80	230*80
Tyres (Front Wheels)		6	6	6	6
Weight	kg	424	642	624	682

FEATURES

The light weight and maneuverability make it convenient to use in supermarket and warehouse
25% grade ability when driving on slopes
Zero-turn radius and compact design (1.53m*0.70*) provide access in and around confined work areas
On-board diagnostic help operators troubleshoot on the fly and make adjustments in the field to maximize uptime
