Parrot Beak Fork Attachment | Vimal Industries

DRUM HANDLERS »Parrot Beak Fork Attachment

Model Number : VI-D-FA-PB-1

Stock: In-Stock

Main Specs : 360 kg maximum capacity, can be used for plastic & metal drums

Model		VI-D-FA-PB-1	VI-D-FA-PB-1B	VI-D-FA-PB-1R
Capacity	Kg	360*1	360*1	500*1
Eagle Grip Adjustable Height	mm	525-750	465-690	600-750
Single Fork Sleeve Size	mm	150*55	150*55	150*55
Outer Width of Double Fork Sleeve	mm	660	660	750
Fork Sleeve Length	mm	600	600	-
External Dimension (LWH)	mm	780670850	780670850	910760850
Net Weight	Kg	41	45	52

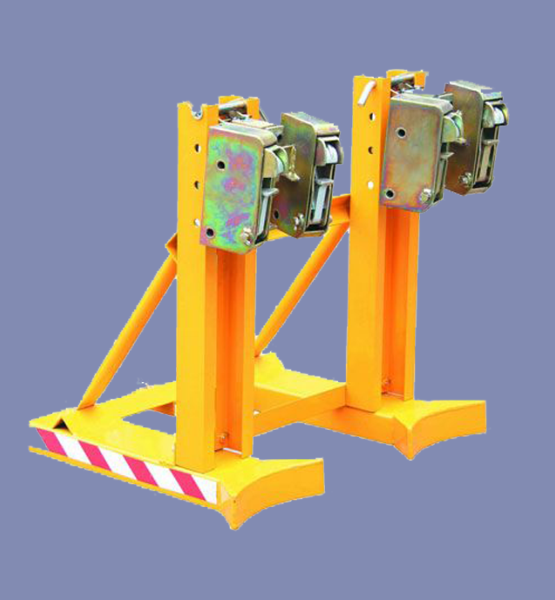

Double drum parrot beak attachment

Pick up drums automatically; driver never leaves seat while lifting and releasing drums
Use with open or closed head drums;
Handles steel, fiber and poly drums with 2 drum options with 720 kg (360kg x 2)
Completely Mechanical drum grab requires no hydraulic or electrical connections;
Double grip head has different position to fit different height;
Rim grip drum handler can come supplied with a rubber cushioned support;
Strong ‘parrot beak’ gripping mechanism reducing dangerous and costly spillages and drum damage;
Hard steel gripping head for a long service life with low maintenance and operating costs
Detachable frame saves transport cost;

* R denotes for Rubber belt on drum support (to avoid metal to metal contact)

Model		VI-D-FA-PB-2	VI-D-FA-PB-2B	VI-D-FA-PB-2R
Capacity	Kg	360*2	360*2	500*2
Eagle Grip Adjustable Height	mm	525-750	465-690	600-750
Single Fork Sleeve Size	mm	150*55		150*55
Outer Width of Double Fork Sleeve	mm	750	750	750
Fork Sleeve Length	mm	755	755	755
External Dimension (LWH)	mm	910910850	910910850	910760850
Net Weight	Kg	63	75	63

Four drum parrot beak attachment

Pick up drums automatically; driver never leaves seat while lifting and releasing drums.
Use with open or closed head drums.
Handles steel, fiber and poly drums with 2 drum options with 1440 kg (360 kg x 4).
Ideal for transporting and palletizing drums.
Use of a special parrot beak structure with automatic adjusting core frame which is speedy and safe.
Simply position the center guide over the four drums, lower and lift.
It is designed for carrying 4 drums at one time which is fit for operation inside containers.
Applicable for use in harbors, large-scale raw material warehouses and other places where drum transporting need to be done in large amount.
Suitable for 3-ton forklift capacity.

Model		VI-D-FA-PB-4	VI-D-FA-PB-4-1
Capacity	Kg	500*4	500*4
Eagle Grip Adjustable Height	mm	N.A.	N.A.
Single Fork Sleeve Size	mm	175*65	175*65
Outer Width of Double Fork Sleeve	mm	880	880
Fork Sleeve Length	mm	960	960
External Dimension (LWH)	mm	980960500	980960500
Net Weight	Kg	174	174
