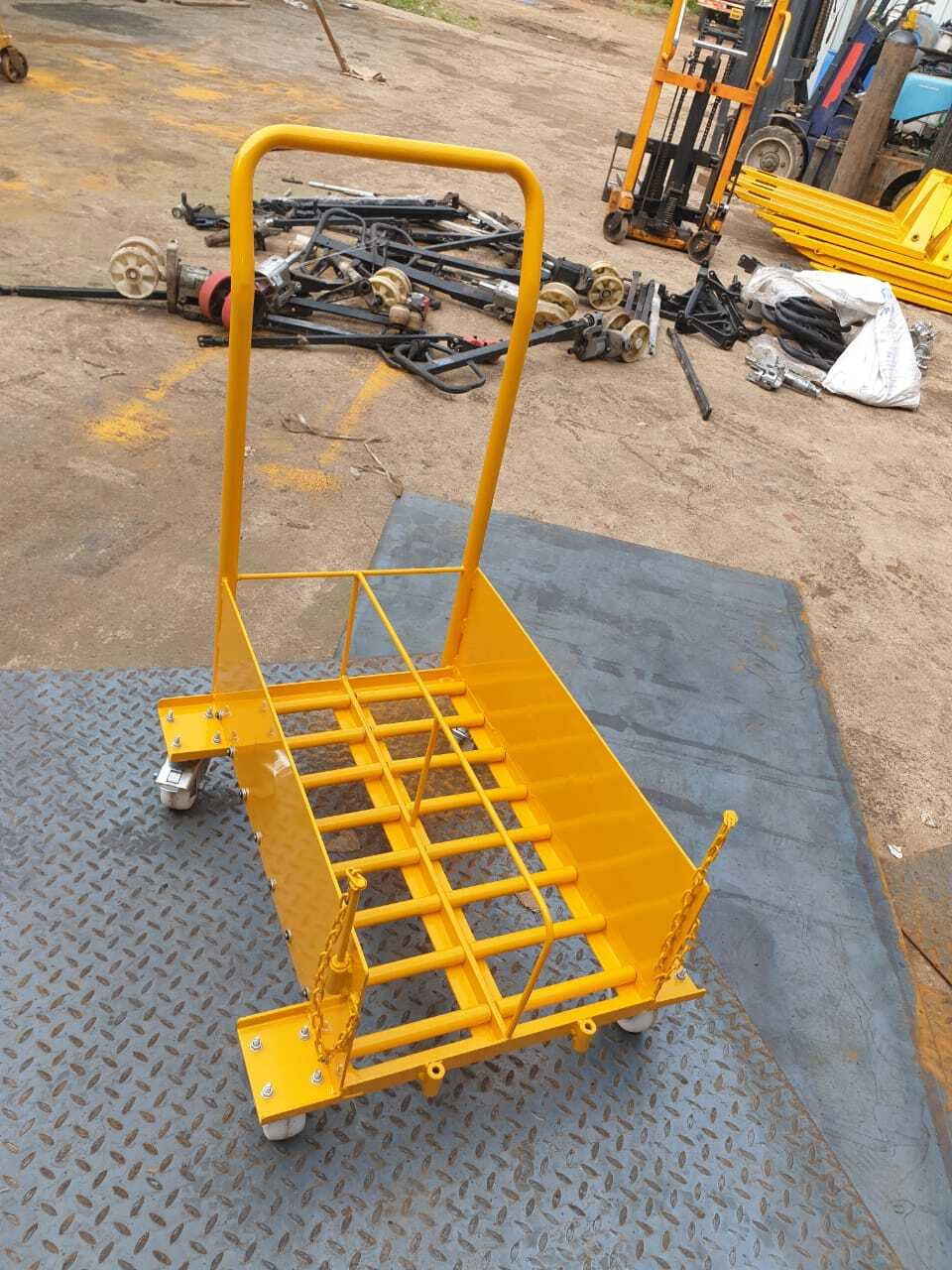

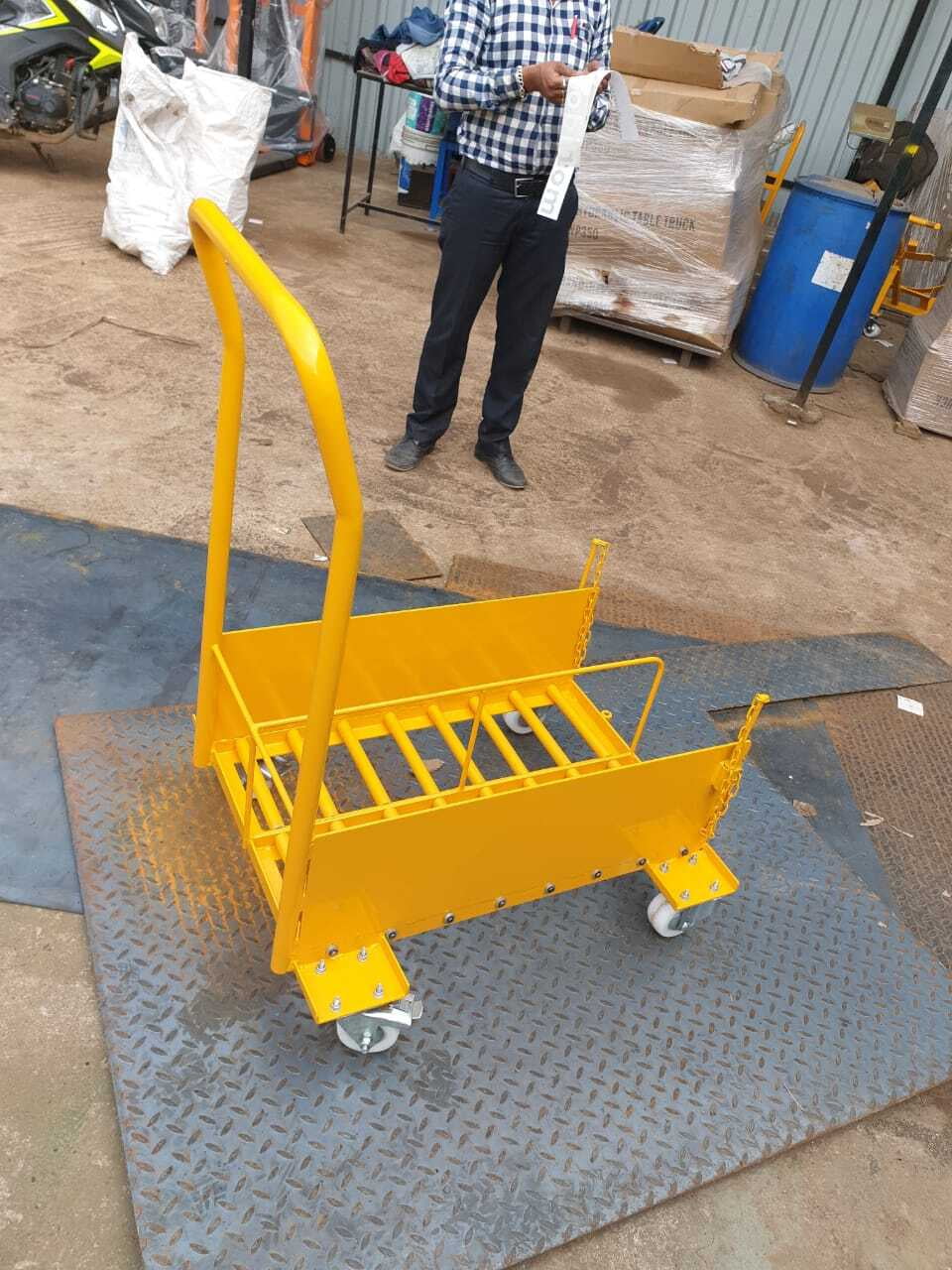

Battery Changing Trolley
Battery Changing Trolley


Battery Changing Trolley
Model Number : VI-AE-BCT Series
HSN Code : 84279000
Stock: In-Stock
Main Specs : Suitable for single & double batteries, roller bed with locking system
Equipment Details
Equipment Details
Vimal battery changing trolley with 500 kgs capacity is an ergonomically designed for lifting and changing batteries.
- Adjustable height
- Design to simplify the change of battery in the trucks when used for the heavy continuous operation.
- The battery can be changed within one minute against a new fully charged battery.
- The used battery can then be replaced under controlled battery charge sequence to give optimum life on the battery.
- With the easy quick hook system, the trolley is connected to the truck before the change of battery.
TECHNICAL SPECIFICATION

Model | VI-AE-BCT SERIES |
---|---|
Load Capacity | 500Kg |
Dimensions | 810mm X 510mm X 175mm (LXWXH) |
Roller Dia | 25mm |
Roller width | 100mm |
No. of Rollers | 16 each side |
Roller Pitch | 100mm |
Wheel Type | Nylon |
Wheel Dimensions | 100mm x 50mm 2nos fix & 2 nos swivel |
Colour | Yellow Powder Coated |
Handle | 950mm From ground |
